Sage Pine Bookcase

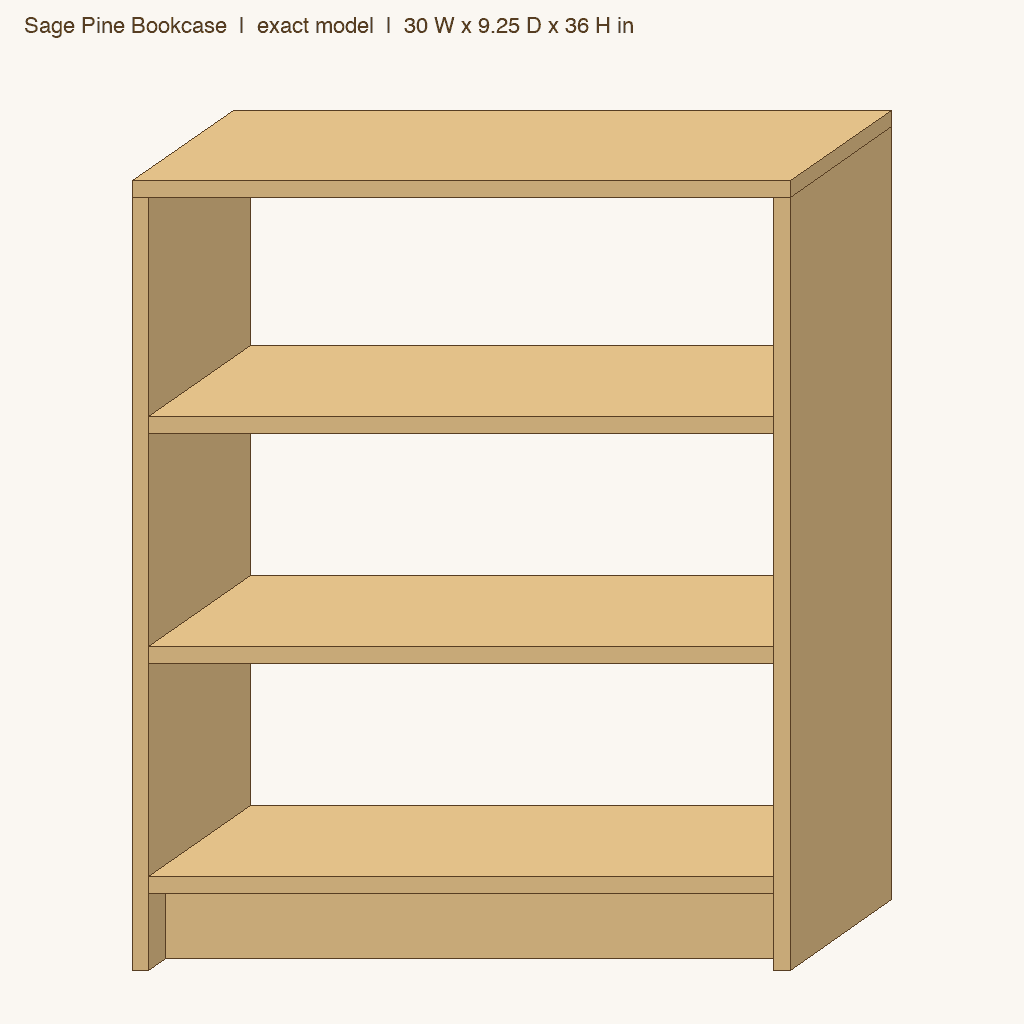

Sage Pine Bookcase measures 30 W x 9.25 D x 36 H in, 7 boards cut from 4 pieces of stock with 11 butt joints.
What was checked: every part cut from real stock with the saw kerf, no two boards in the same space, every board touching another, shelf spans against the limit for the stock.
- Overall
- 30 W × 9¼ D × 36 H in
- Stock
- 3 x 1x10 pine, 8 ft, 1 x 1x4 pine, 8 ft
- Joints
- 11 butt joints, glue and screws
- Screws
- about 33
- Saw kerf
- 1/8 in
The first rows are free to read below. Every library pattern and its PDF are included with any plan.
| # | Item |
|---|---|
| 1 | 3 x 1x10 pine, 8 ft |
| 2 | 1 x 1x4 pine, 8 ft |
| Part | Qty | Cut size (T x W x L) |
|---|---|---|
| Side | 2 | 0.75 x 9.25 x 35.25 in |
| Top | 1 | 0.75 x 9.25 x 30 in |
Every library pattern and its PDF are included with any plan. The first rows, the supplies and the notes are free to read.
| Category | Item | Amount |
|---|---|---|
| lumber | 3 x 1x10 pine | 8 ft |
| lumber | 1 x 1x4 pine | 8 ft |
| hardware | About 33 1-1/4 in wood screws | 1 |
| hardware | Wood glue | 1 |
| finishes | Clear finish | 1 |
Inputs
Sizes are computed from these fixed inputs: kerf (in) 0.125, max shelf span (in) 32, target (in) 30, 9.25, 36, tol (in) 2. A different gauge or stock makes a different size; the counts do not change.
Brief
“I'd like a 3-shelf bookcase in pine, about 30 inches wide, 36 tall and 9.25 deep, painted a soft sage green with a natural pine top. Simple screwed butt joints are fine, and I want a small toe kick at the bottom.”
Checks
The counts, part sizes and placement were checked by computation on 30 September 2026 (verified on attempt 2); the piece has not yet been made by hand. If yours comes out differently, tell us and we will look at it.
