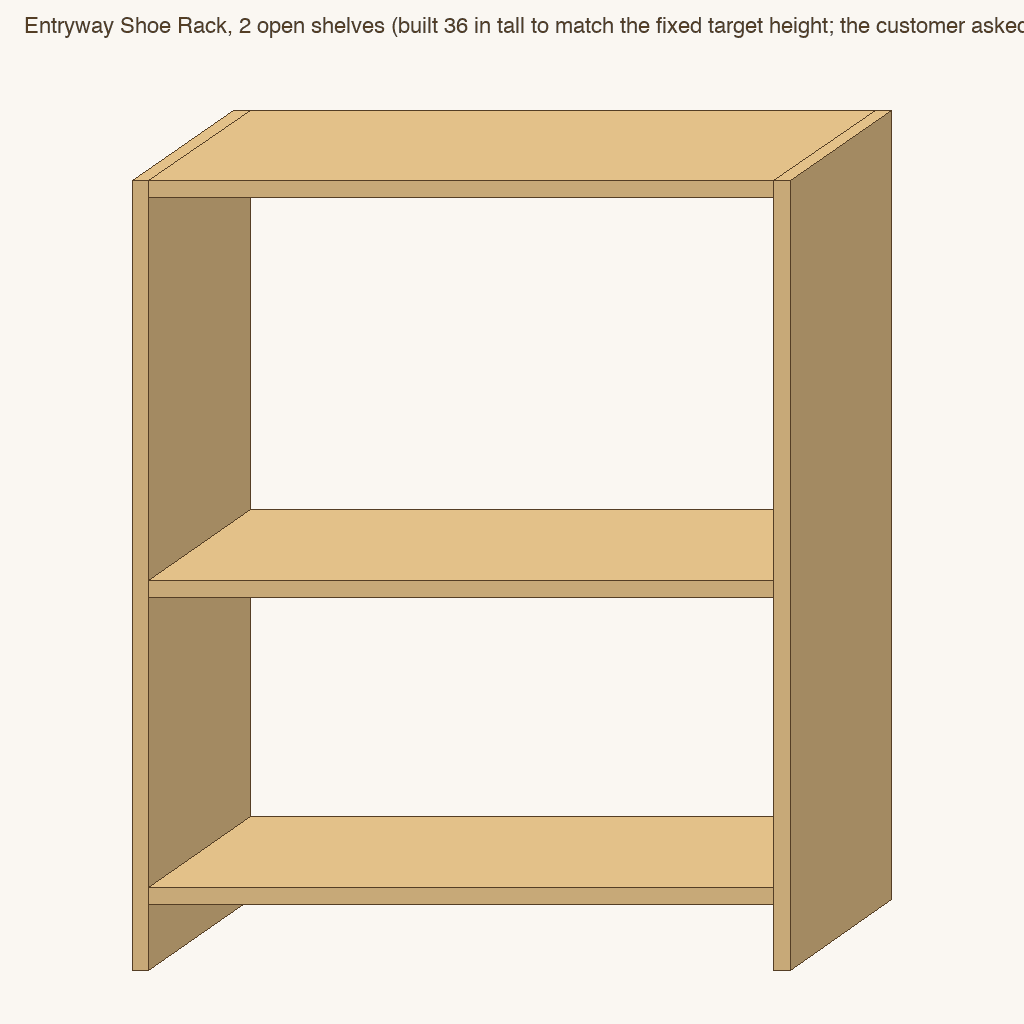

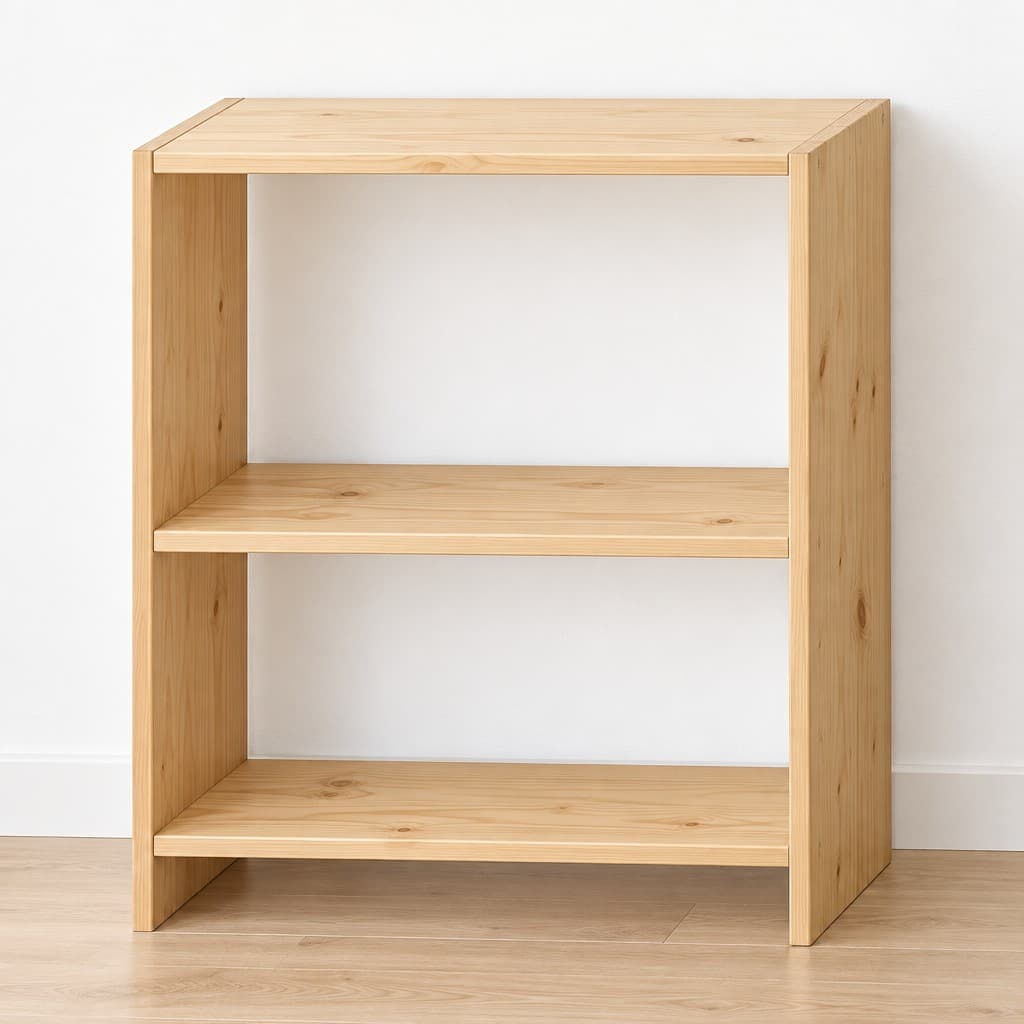

Entryway Shoe Rack, 2 open shelves (built 36 in tall to match the fixed target height; the customer asked for about 16 in)
Entryway Shoe Rack measures 30 W x 9.25 D x 36 H in, 5 boards cut from 2 pieces of stock with 6 butt joints.
What was checked: every part cut from real stock with the saw kerf, no two boards in the same space, every board touching another, shelf spans against the limit for the stock.
- Overall
- 30 W × 9¼ D × 36 H in
- Stock
- 2 x 1x10 pine, 8 ft
- Joints
- 6 butt joints, glue and screws
- Screws
- about 18
- Saw kerf
- 1/8 in
The first rows are free to read below. Every library pattern and its PDF are included with any plan.
| # | Item |
|---|---|
| 1 | 2 x 1x10 pine, 8 ft |
| Part | Qty | Cut size (T x W x L) |
|---|---|---|
| Side | 2 | 0.75 x 9.25 x 36 in |
| Shelf | 3 | 0.75 x 9.25 x 28.5 in |
Cutting plan (1/8 in kerf included):
Every library pattern and its PDF are included with any plan. The first rows, the supplies and the notes are free to read.
| Category | Item | Amount |
|---|---|---|
| lumber | 2 x 1x10 pine | 8 ft |
| hardware | About 18 1-1/4 in wood screws | 1 |
| hardware | Wood glue | 1 |
| finishes | Clear finish | 1 |
Inputs
Sizes are computed from these fixed inputs: kerf (in) 0.125, max shelf span (in) 32, target (in) 30, 9.25, 36, tol (in) 2. A different gauge or stock makes a different size; the counts do not change.
Brief
“I need a low shoe rack for our entryway, 30 in wide and 9 1/4 in deep, only about 16 in tall with two open shelves. I'm planning to stain it a dark walnut colour.”
Checks
The counts, part sizes and placement were checked by computation on 29 September 2026 (verified on attempt 1); the piece has not yet been made by hand. If yours comes out differently, tell us and we will look at it.
