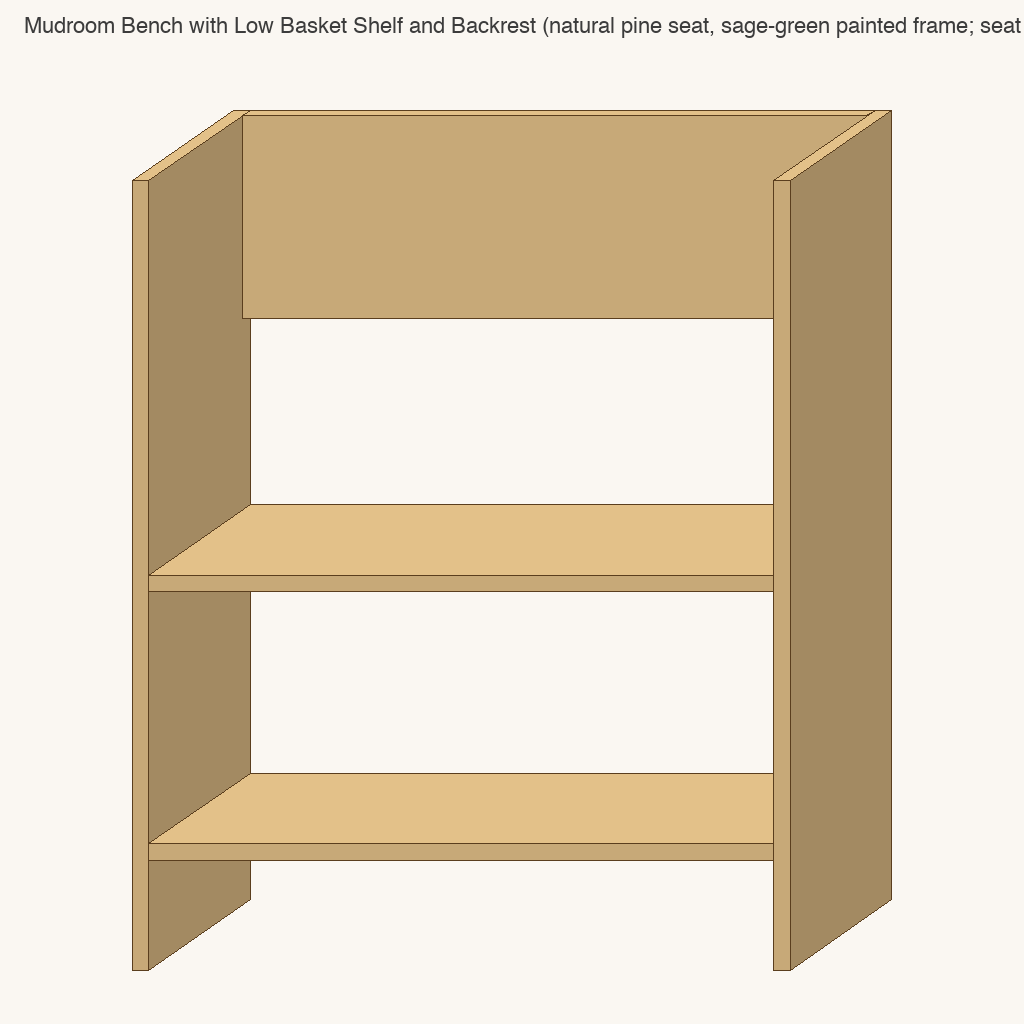

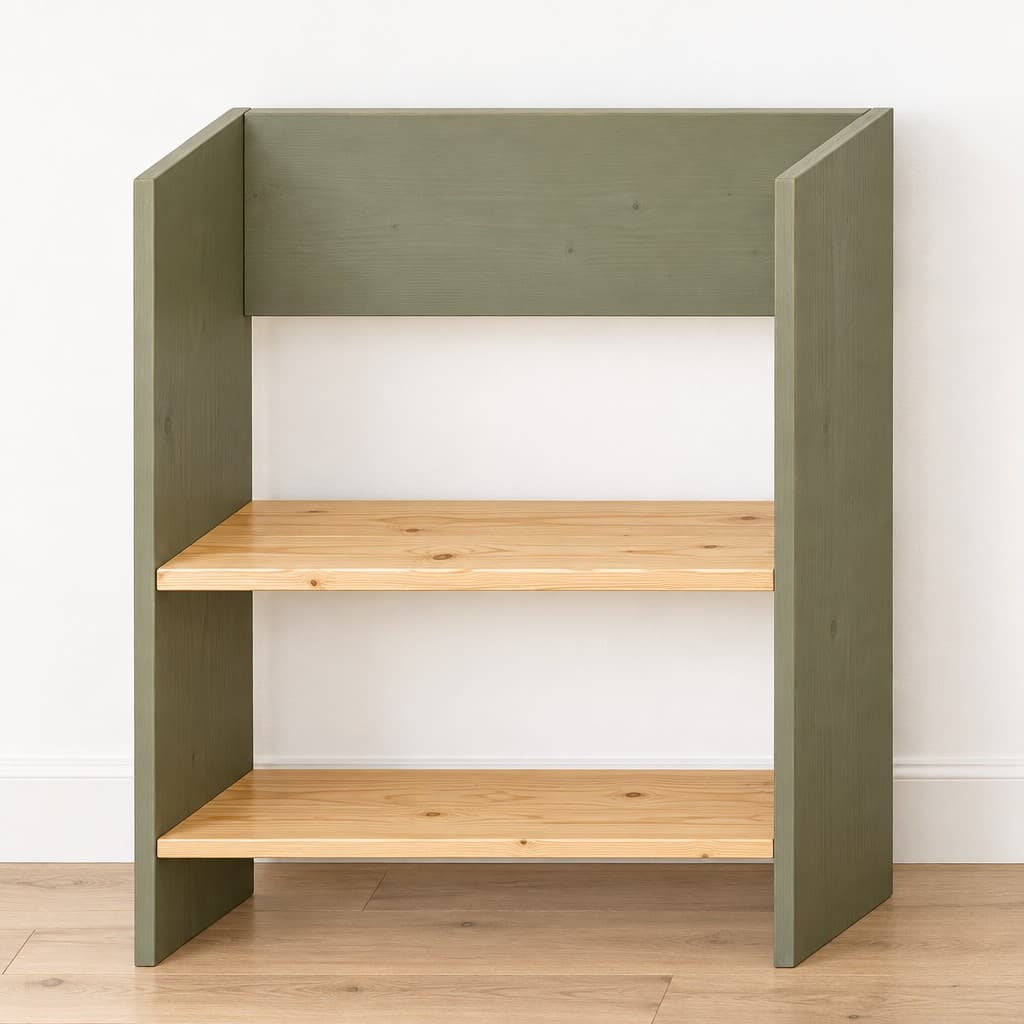

Mudroom Bench with Low Basket Shelf and Backrest (natural pine seat, sage-green painted frame; seat height 18 in, overall 36 in with backrest to meet the 36 in target height)
Mudroom Bench with Basket Shelf measures 30 W x 9.25 D x 36 H in, 5 boards cut from 2 pieces of stock with 6 butt joints.
What was checked: every part cut from real stock with the saw kerf, no two boards in the same space, every board touching another, shelf spans against the limit for the stock.
- Overall
- 30 W × 9¼ D × 36 H in
- Stock
- 2 x 1x10 pine, 8 ft
- Joints
- 6 butt joints, glue and screws
- Screws
- about 18
- Saw kerf
- 1/8 in
The first rows are free to read below. Every library pattern and its PDF are included with any plan.
| # | Item |
|---|---|
| 1 | 2 x 1x10 pine, 8 ft |
| Part | Qty | Cut size (T x W x L) |
|---|---|---|
| Side (painted sage green) | 2 | 0.75 x 9.25 x 36 in |
| Seat (natural pine, top at 18 in) | 1 | 0.75 x 9.25 x 28.5 in |
Cutting plan (1/8 in kerf included):
Every library pattern and its PDF are included with any plan. The first rows, the supplies and the notes are free to read.
| Category | Item | Amount |
|---|---|---|
| lumber | 2 x 1x10 pine | 8 ft |
| hardware | About 18 1-1/4 in wood screws | 1 |
| hardware | Wood glue | 1 |
| finishes | Clear finish | 1 |
Inputs
Sizes are computed from these fixed inputs: kerf (in) 0.125, max shelf span (in) 32, target (in) 30, 9.25, 36, tol (in) 2. A different gauge or stock makes a different size; the counts do not change.
Brief
“Can you plan a small bench for my mudroom, 30 in wide, 9 1/4 in deep and 18 in tall, with a lower shelf for baskets? I want the seat in natural pine and the frame painted sage green.”
Checks
The counts, part sizes and placement were checked by computation on 29 September 2026 (verified on attempt 1); the piece has not yet been made by hand. If yours comes out differently, tell us and we will look at it.
